- Size: 8478X4314X3970
- Place of Origin: China
- Brand Name: Xuanhua Construction Machinery
- Model Number: SD9
- Weight: 48880.000 kg

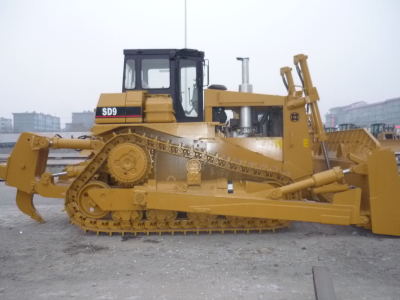

SD9 bulldozer is track-type dozer with elevated sprocket, hydraulic direct drive, semi-rigid suspended and hydraulic controls. Equipped with power separating hydraulic-mechanic type Torque converter, planetary, power shift and one lever control transmission. SD9bulldozer equipped with integrated hydraulic system, electric monitoring, SD9bulldozer can be equipped with many optional equipment and attachment, it can be used in road building, hydro-electric construction, land clearance, port and mine development and other construction field.
Main specifications
Dozer:Straight Tilt
Operation weight:48880KG with ridge buster
Ground pressure:102kpa
Track gauge:2250 mm
Min. Ground clearance:517mm
Gradient: 30/25 º
Dozing capacity:13.5 m3
Blade width:4314mm
Max.digging depth:614 mm
Engine Type:
CUMMINS KTA19-C525S10
Rated revolution:2100 rpm
Reted power:235 KW
Gear:F3R3
Torque converter
Torque converter used in SD9 bulldozer is power separating hydraulic-mechanic type.
Transmission assembly
It integrates center drive, transmission and speed changing control valve into one component. It can be assembled or disassembled as a assembly or as a part. It is very convenient to service. Transmission is multi-stage planetary gear drive to realize modular assembling and disassembling. The shift can be changed among 1st gear, 2nd gear, 3rd gear forward or reverse rapidly, through multi-functional control valve.
Steering and braking clutch
Steering clutch and braking clutch are adjustment free, oil-type , multi-disc clutch. The braking clutch is pressed by spring, separated hydraulicly, constant meshed type. Steering clutch is hydraulic pressed, non-constant engaged clutch. The action of steering and braking is combined, operation manually to realize steering slowly, sharply and braking. The braking of entire machine can be realized through the pedal. Parking braking rod is designed to keep the undercarriage system in braking condition when starting the engine and guarantee the machine not to slip on slope when starting the engine.
Final drive
Final drive is two-stage planetary reduction gear mechanism. It is mounted at outside of steering and braking clutch. Combined sprocket segment is very convenient for assembling, disassembling and service.
Hydraulic system of the machine
It is composed of oil pump, transmission control valve, steering and braking control valve, sequence valve, relief valve at torque convertor outlet, filter and lines.
Main pump-------------------------------------------------------------------------------------------------------------Gear pump
Oil flow----------------------------------------------------------------------------------------------------------------160L/min
Working pressure ------------------------------------------------------------------------------------------------------3.1MPa
Rops with air conditioner cab
The cab is hexagonal thin wall box-type structure. Glass is mounted at six sides with wide viewing area. Pulling and pushing glass is installed at back side. Air conditioner is top-mounted with functions of cooling and heating. The structure of Rop is rigid. It can protect the driver efficiently when the bulldozer is in special condition.
Implement hydraulic system
Implement hydraulic system can control lifting, lowing and tilting of the blade. It also can control lifting, lowing of the ripper. It mainly consists of oil pump, cylinder, inlet valve group diverter valve group, oil tank line and controlling parts.
Main pump ------------------------------------------------------------------------------------------ High pressure gear pump
Oil flow --------------------------------------------------------------------------------------------------------------194L/min
System working pressure-------------------------------------------------------------------------------------------18.6MPa
Left and right undercarriage system
The track is triangle shape. The sprocket is elevated. There are two idlers in front and at rear of the frame and seven track roller. Recoil spring and cylinder adjuster is mounted at the undercarriage. The rear end of undercarriage frame is supported on the pivot. The front end is articulated with the equalizer bar. Choosing different undercarriage system according to different implement. The customer is required can guarantee center gravity of the machine to be at best efficient position. Choosing different width of track shoe can ensure the bulldozer developing its optimum traction efficiency.
Maintenance filling capacity
Fuel tank --------------------------------------------------------------------------------------------------------------------- 450L
Water tank of cooling system ---------------------------------------------------------------------------------------------118L
Camshaft box of the engine-------------------------------------------------------------------------------------------------20L
Bevel gear case--------------------------------------------------------------------------------------------------------------150L
Implement oil tank--------------------------------------------------------------------------------------------------------- 100L
Pivot lubricating tank-------------------------------------------------------------------------------------------------------15L
Final drive ------------------------------------------------------------------------------------------------------------------15L
Optional implement and components (*ordinary)
1)cab
A、 Rops with air conditioner cab *
B、 Rops cab
C、 Rops canopy
2)Front mounted implement
A、 straight tilting blade *
B、 Angle blade
C、 U-type blade
3)Rear mounted implement
A、 single shank ripper
B、 three shanks ripper
C、 back drawing mechanism
4)Track shoe of undercarriage
Optional track shoe width
A、 510mm B 、 560mm *
C、 660mm D 、 914mm
5)winch dozer used in forest, desert dozer, LGP dozer ,HW dozer can be chosen according to special requirements of customer.
